H3543HSA-AG IP51 Light Weight DR Panel

Name: H3543HSAAG IP51 Light Weight DR Panel
Brand: HUATEC
Price: 1 USD

Wholesale H3543HSA-AG IP51 Light Weight DR Panel from china suppliers

Brand Name : HUATEC

Model Number : H3543HSA-AG

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T,Paypal

Supply Ability : 5sets/Month

Delivery Time : 10-15 working days after receipt of your payment

Packaging Details : Carton packing box

Active Area : 350 x 430 mm

Pixel Pitch : 139 μm

Resolution : 2560 x 3072

Energy Range : 40-160 KV

Adapter In : AC 100-240V,50-60Hz

Contact Now

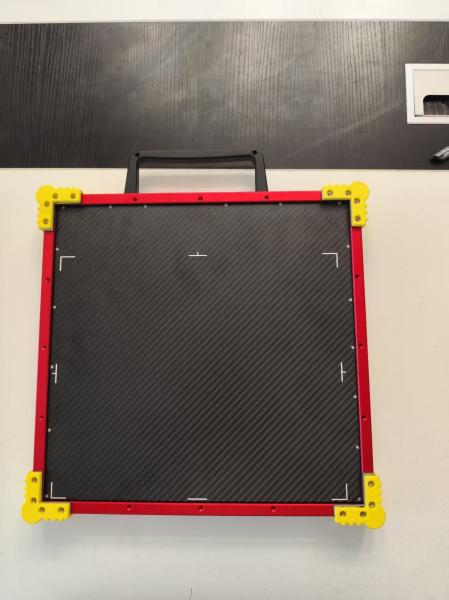

H3543HSA-AG IP51 Light Weight DR Panel

H3543HSA-AG is a light weight detector based on amorphous silicon(a-Si), which is suitable for various fields such as DR and Non-destructive testing.

Electricals and interfaceA/D Conversion 16 bits

Data Interface Gigabit Ethernet

Acquire Time wired: 1s

Exposure Control Software/Outer/AED

Mechanical
Dimension 384 × 460 × 14.8 mm
Weight 3.4kg

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51

Sensor
Receptor Type a-Si

Scintillator Gos / CsI:TI

Active Area 350 x 430 mm

Resolution 2560 x 3072

Pixel Pitch 139 μm

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W

Image Quality
Limiting Resolution 3.5 LP/mm

Energy Range 40-160 KV

Dynamic Range ≥84 dB

Sensitivity ≥0.54 LSB/nGy

Ghos <1% 1st frame

DQE 42% @(1 LP/mm)

28% @(2 LP/mm)

MTF 68% @(1 LP/mm)

38% @(2 LP/mm)

20% @(3 LP/mm)

H3543HSA-AG IP51 Light Weight DR Panel
